FPAA Shields
FPAA Shields
Introduction
After testing the FPAA chip OTC24000 with the FPAA Starter Board, it is time to develop some FPAA shields for the Raspberry Pi, Arduino and Teensy boards.
FPAA - Raspberry Pi Shield

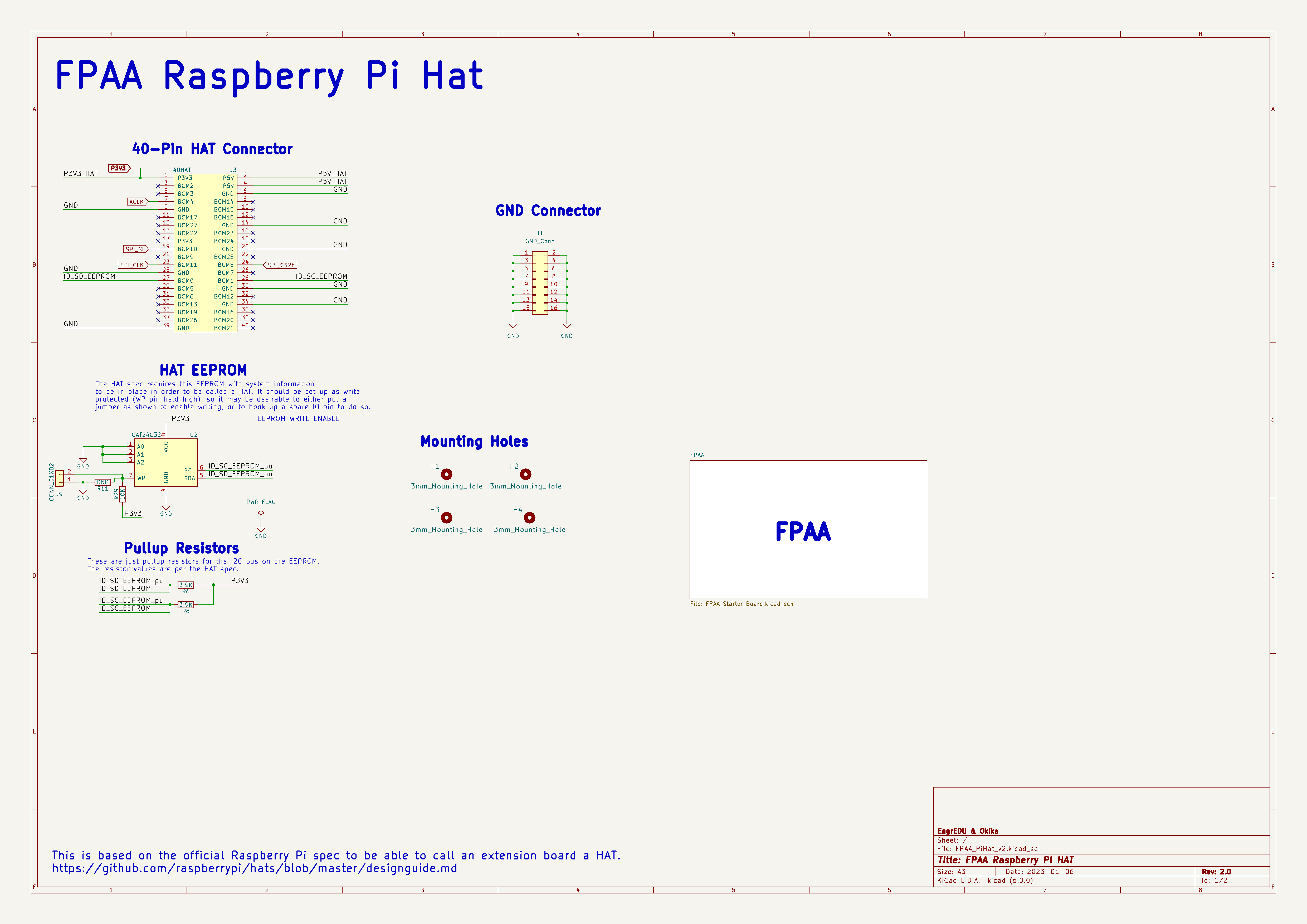

Reference Designs

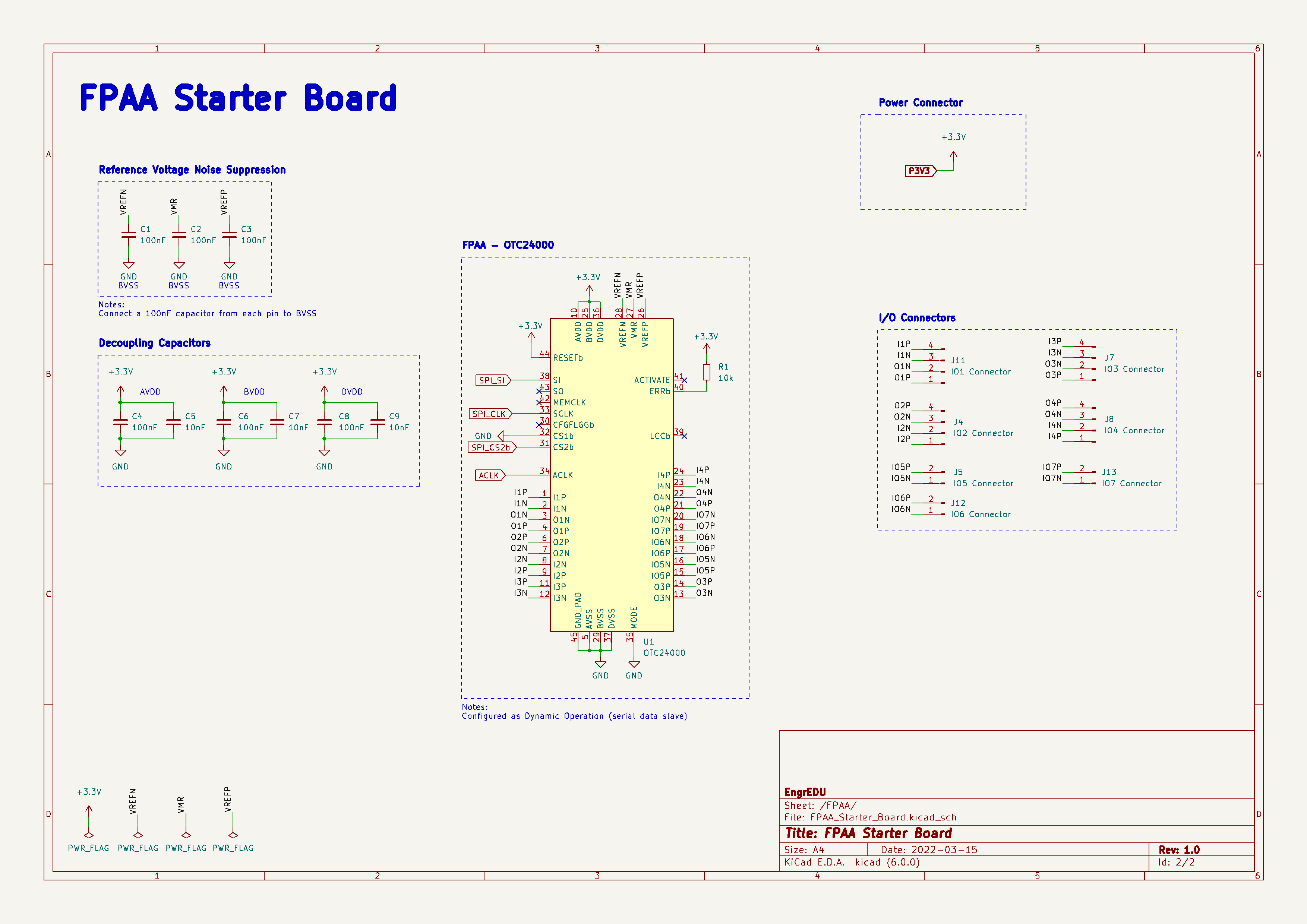

The reference design is based on the FPAA Starter Board Reference Design section.

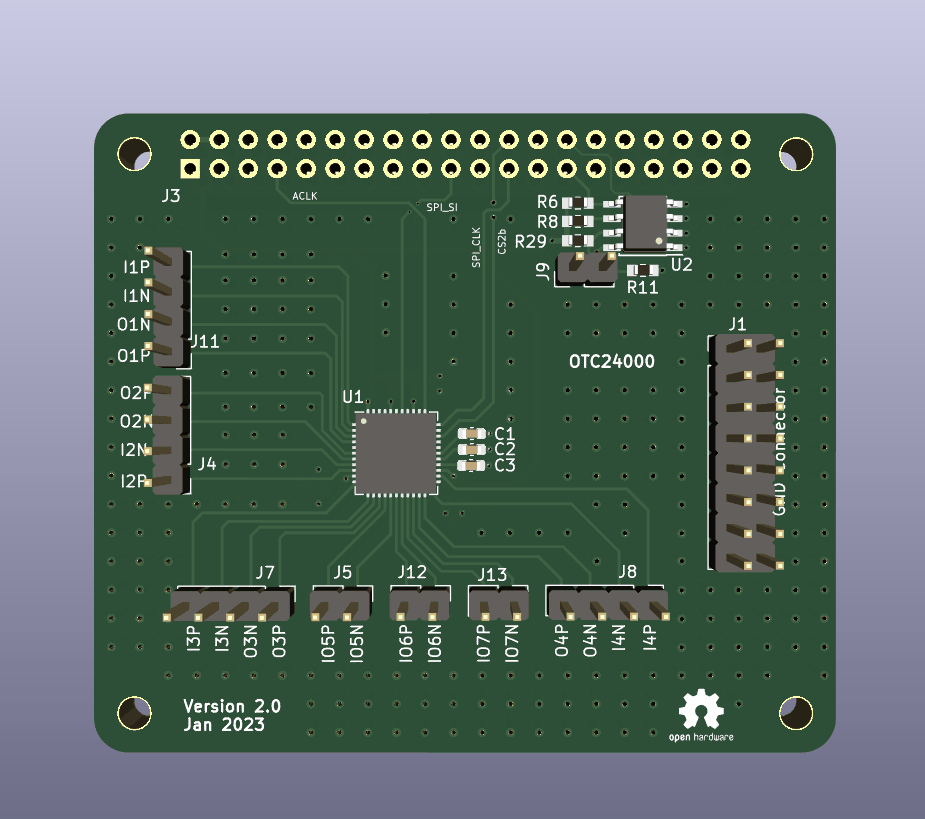

PCB Design Stage
Assemble Stage

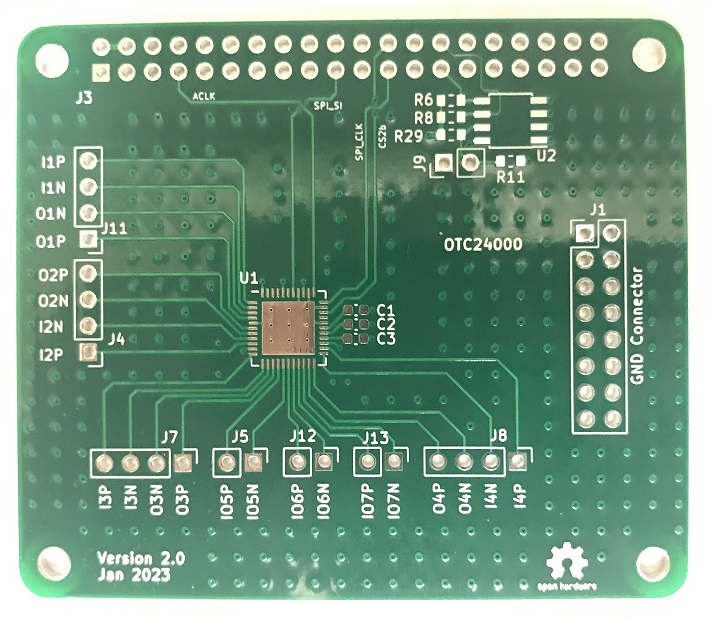

The boards were manufactured by PCBWay.

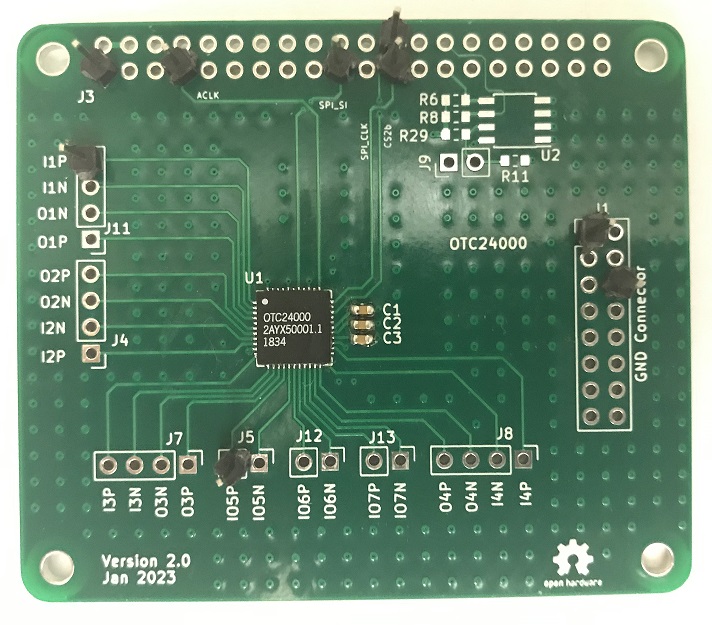

Assembled in house.
The connectors are not fully soldered because the board is currently under testing. This picture will be updated once the testing is fully done.
Coding Stage
The code is exactly the same code used for the FPAA Starter Board.
Testing Stage
The boards are currently under testing.

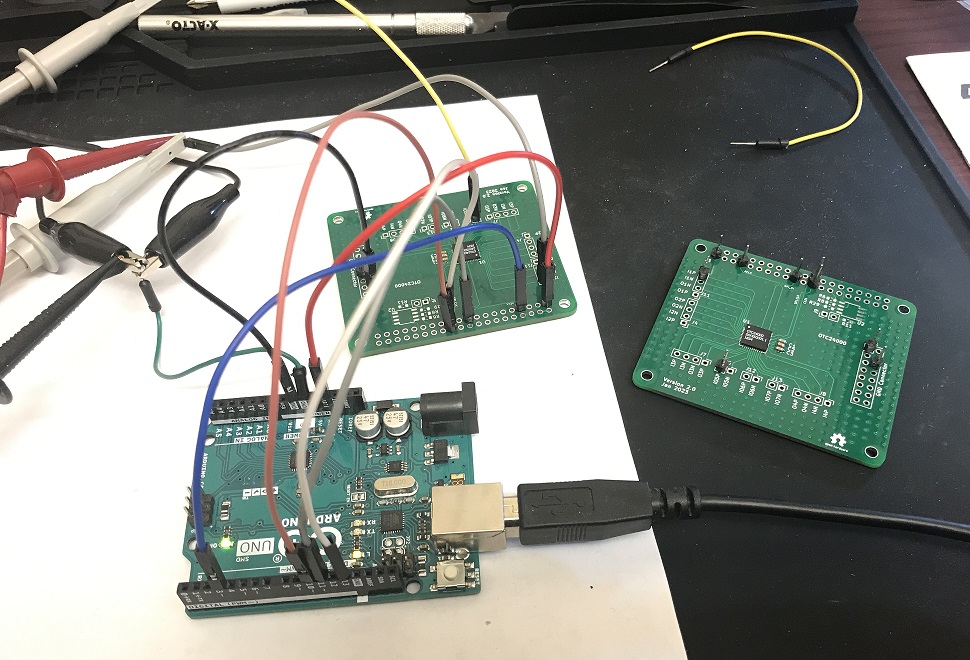

This shield is for the Raspberry Pi but it is easier to test the board with an Arduino for now. This section will be updated accordingly once the tests are completed.
Thank you for your patience.
FPAA - Arduino Shield
Under development...
FPAA - Teensy Shield
Under development...
